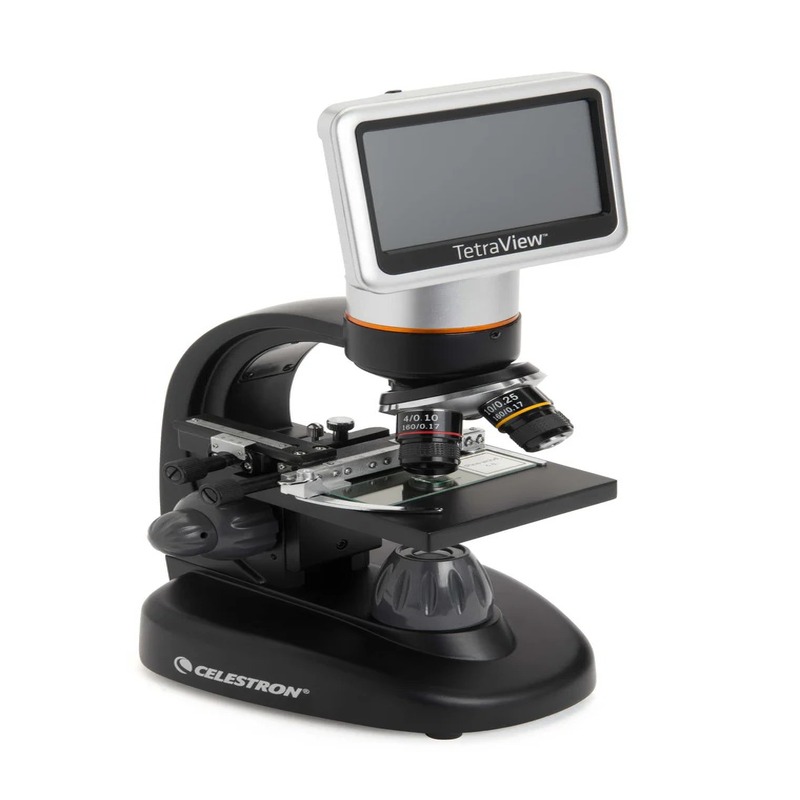

Brand: Pending Creation Celestron Tetra View LCD Digital Microscope

Type of Microscope:

LCD Desktop

Head:

180° rotatable head w/4.3" TFT LCD Screen

Nosepiece:

Quad with click stop

Objective(s) Type:

(4) Achromatic objectives on turret

Objective(s) Standard:

DIN 35 RMS

Objective(s) Magnification:

4x, 10x, 20x, 40x

Objective(s) Thread:

WJ 4/5" x 1/36"

Focus Type(s):

Course Focus and Fine Focus

Focus Travel (per rotation):

0.7mm to 35.3mm (.027" to 1.39") (est.)

Magnification Range:

40x, 100x, 200x, 400x, Up to 1600x with digtial zoom

Illumination Type:

LEDs

Illumination Position(s):

TBD

Illumination Adjustability Mechanism:

Adjustable wheels at base

Power Source:

Universal 100 to 240V, 50/60 hz multi-country plug and (4) AA (optional)

Battery Options:

Yes (4AA)

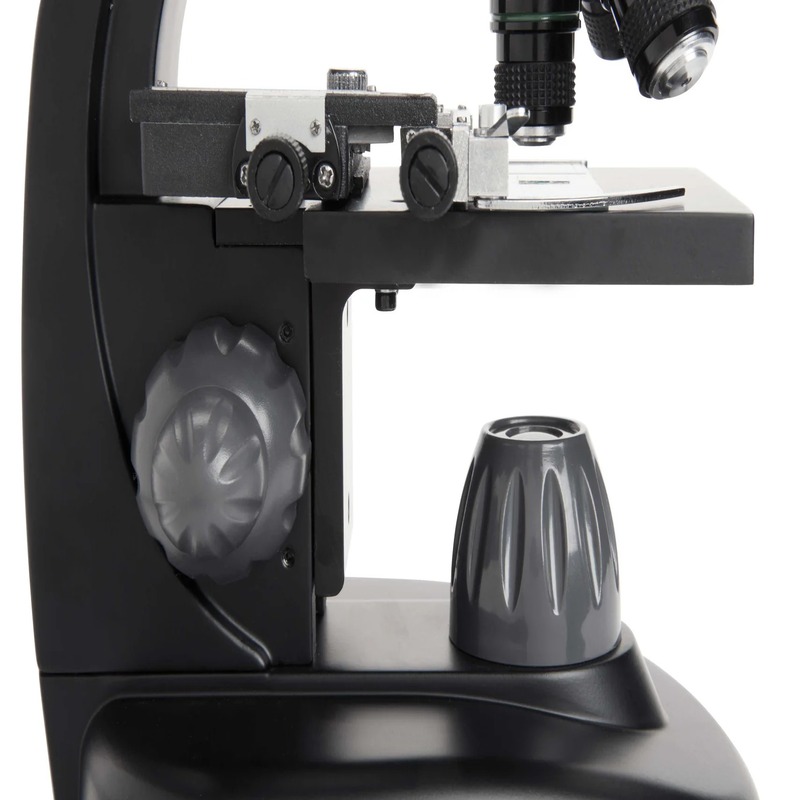

Stage:

Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") - With Filter wheel (Red, blue, green | 1mm, 3mm, 6mm apertures)

Condenser Type:

Aplantic

Condenser N.A.:

N.A. 65

Stage Diaphragm:

Multiple on wheel

Eyepiece Type:

CMOS Sensor in lieu of eyepiece

Sensor Size:

5MP - 1/2.5"

Pixel Size:

2.2 μm

Screen type:

High definition touch, 480 x 272 pixels resolution, 109mm (4.3") with 4x digital zoom, rotates 180°

Screen Size:

4.3"

Memory Type:

SD Card

Memory Size:

8G SD included, Supports up to 32G

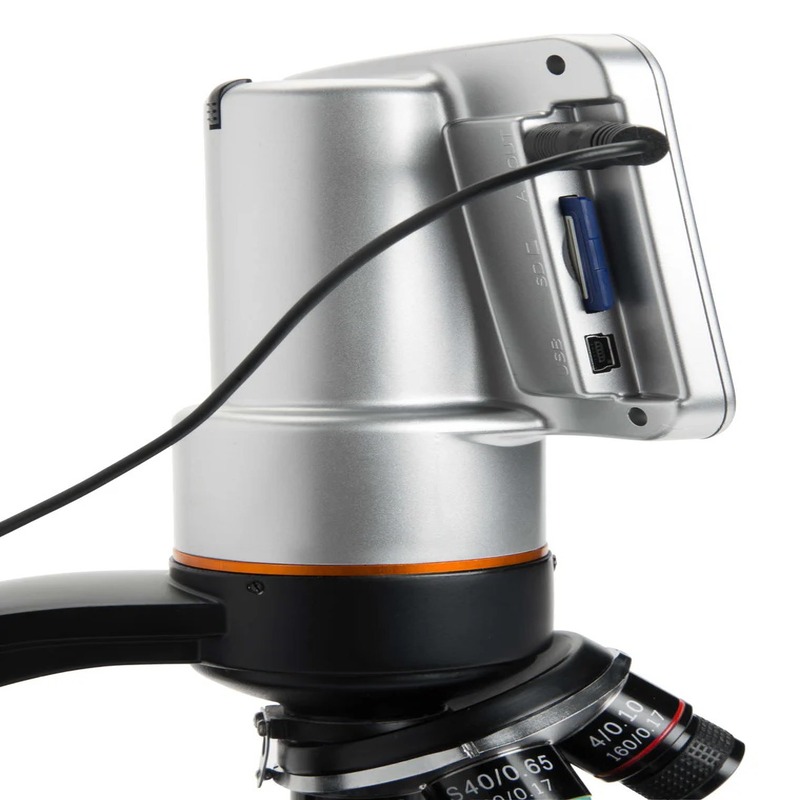

Port(s) In:

AC Plug (power), SD Card slot (32Gmax)

Port(s) Out:

Video/ TV out, USB 2.0

AC Adapter:

5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long

Still image capture resolution:

1920x1080
2048x1152
2560x1440
3072x1728
3648x2048
3072x1728

Video resolution:

VGA (640 x 480)

Shutter trigger position:

On LCD Screen

Software:

Internal Firmware

Microscope Dimensions:

78mm x 140mm x 330mm (7" x 5.5" x 13")

Microscope Weight:

67 oz (1.9 kg)

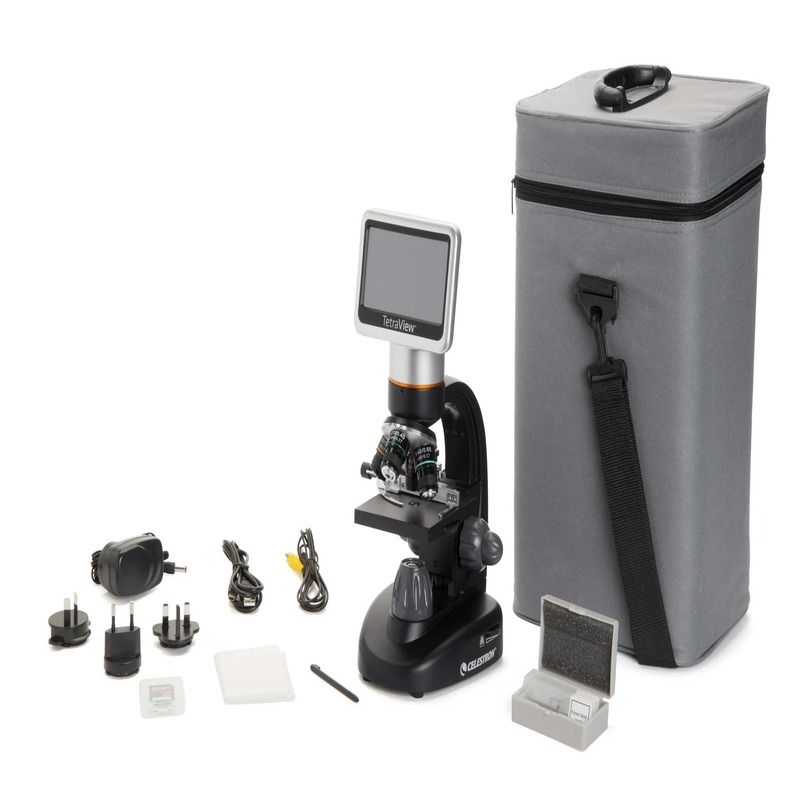

Included Items:

8GB SD Card
USB 2.0 Cable (data transfer)
7 Prepared Slides
4 plug, multi-country AC adapter
Dust Cover
Carrying Case
