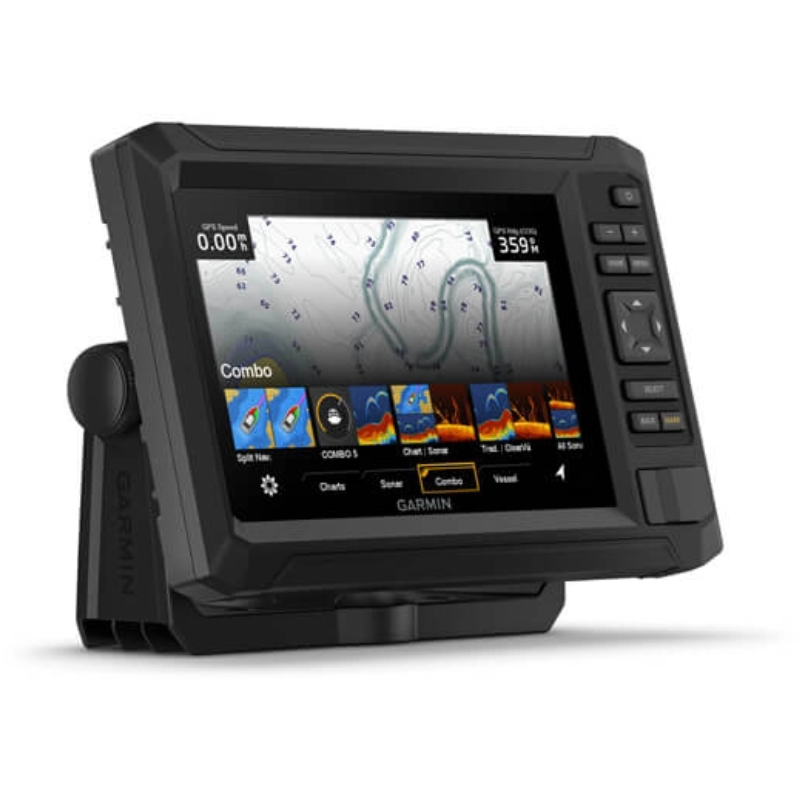

Garmin Echomap UHD2 7 Chartplotters 72cv with GT20-TM Transducer
WHY TALK TO A LOCAL WHEN YOU CAN FISH LIKE ONE?
They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5″ and 7″ chartplotters with clear, crisp sonar and mapping.
Enjoy No. 1 in mapping3 with our Garmin Navionics+ and Garmin Navionics Vision+.
The bright 5″ or 7″ keyed display is made for convenience.
Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars (transducer sold separately
What’s under the water looks even better with high-contrast vivid colour palettes.
Wi-Fi® connectivity2 between compatible chartplotters makes it easy to share info.
Special Features
PRELOADED CHARTS
Know the waters you’re in as if you grew up fishing them by using built-in Garmin Navionics+™ charts or optional Garmin Navionics Vision+™.
SONAR SUPPORT
With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide (transducer sold separately).
VIVID COLOUR PALETTES
High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.
BUNDLE YOUR TRANSDUCER
Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
WIRELESS NETWORKING
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5″ and 7″ models can wirelessly share information — such as sonar, waypoints and routes — with them.
ActiveCaptain® App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data and more2.
In the Box: With Transducer
ECHOMAP UHD2 (device varies depending on selection)
GT20-TM transducer
Power/data cable
Tilt mount
Flush mount
Hardware
Documentation
General
DIMENSION
9.1″ x 5.6 x 2.6″ (23.2 x 14.3 x 6.7 cm)
WEIGHT
1.5 lbs (0.7 kg)
Water rating
IPX7
DISPLAY TYPE
WVGA, TN
DISPLAY SIZE
6.1″ x 3.4″ (15.5 x 8.7 cm)
DISPLAY RESOLUTION
800 x 480 pixels
MOUNTING OPTIONS
Bail or flush
INPUT
Keyed
Maps & memory
ACCEPTS DATA CARDS
1 microSD™ card; 32 GB maximum size
WAYPOINTS
5,000
TRACK POINTS
50,000
TRACKS
50 saved tracks
NAVIGATION ROUTES
100
Sensors
GPS
GALILEO
5 Hz
HAS BUILT-IN RECEIVER
RECEIVER
5 Hz
SUPPORTS WAAS
Built-in maps
BUILT-IN AUTO GUIDANCE+
Yes (downloadable via ActiveCaptain app)
GARMIN NAVIONICS+ INLAND & COASTAL
Yes (see Additional)
Garmin Navionics+™ (Coastal)
yes (see Additional)
GARMIN NAVIONICS+ (INLAND)
Yes (see Additional)
Optional map support
LAKEVÜ G3
BLUECHART G3 VISION
GARMIN NAVIONICS+™
GARMIN NAVIONICS VISION+™
GARMIN QUICKDRAW CONTOURS
Chartplotter Features
ACTIVECAPTAIN® COMPATIBLE
Electrical Features
Power Input
9 to 18 VDC.
TYPICAL CURRENT DRAW AT 12 VDC
1 A
MAXIMUM CURRENT DRAW AT 12 VDC
1.5 A
MAXIMUM POWER USAGE AT 10 VDC
18W
Sonar features & specifications
DISPLAYS SONAR
POWER OUTPUT
500 W
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
CLEARVÜ
built-in 260/455/800/1000/1200 kHz
Connections
4-PIN TRANSDUCER PORTS
1
GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Electrical Features
POWER INPUT
9 to 18 Vdc
TYPICAL CURRENT DRAW AT 12 VDC
1.0 A
MAXIMUM CURRENT DRAW AT 12 VDC
1.5 A
MAXIMUM POWER USAGE AT 10 VDC
18W
